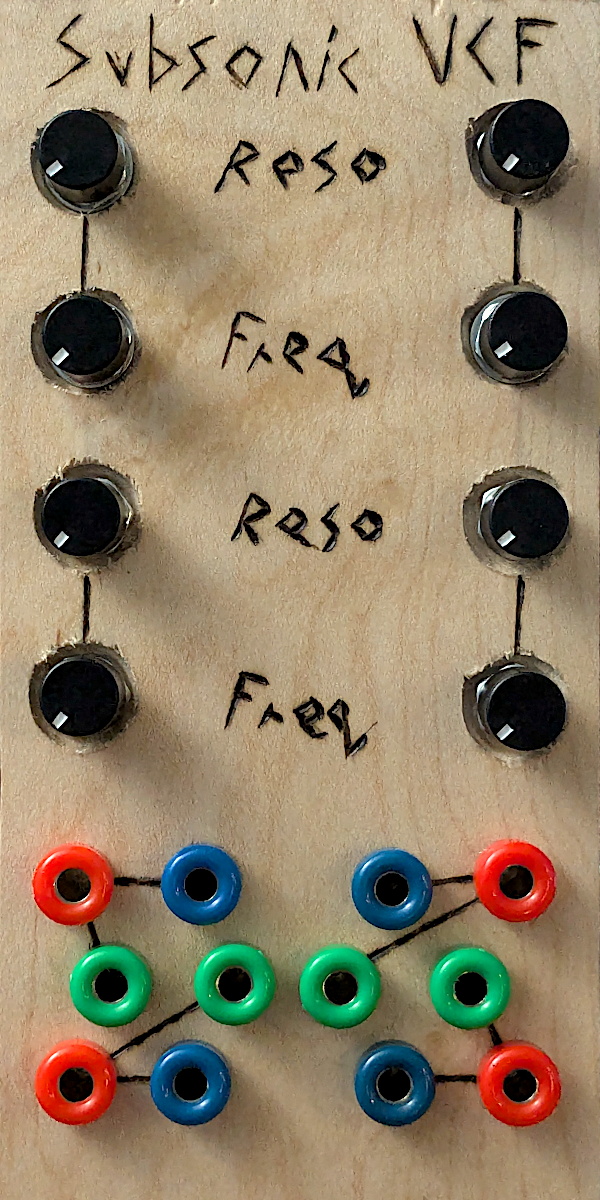

Resonant CV filter inspired by the Ciat-Lonbarde AVDog.
Features:
- Voltage controlled frequency
- Resonance control
- Works as EG, LFO, and slew
This circuit is a resonant VCF, but for CV. It's inspired by the AVDog module from the Ciat-Lonbarde Plumbutter and Rollz-5. You can send in CV/gate signals, and the filter smooths them out and resonates off them, creating swells and flutters in voltage.
There's a

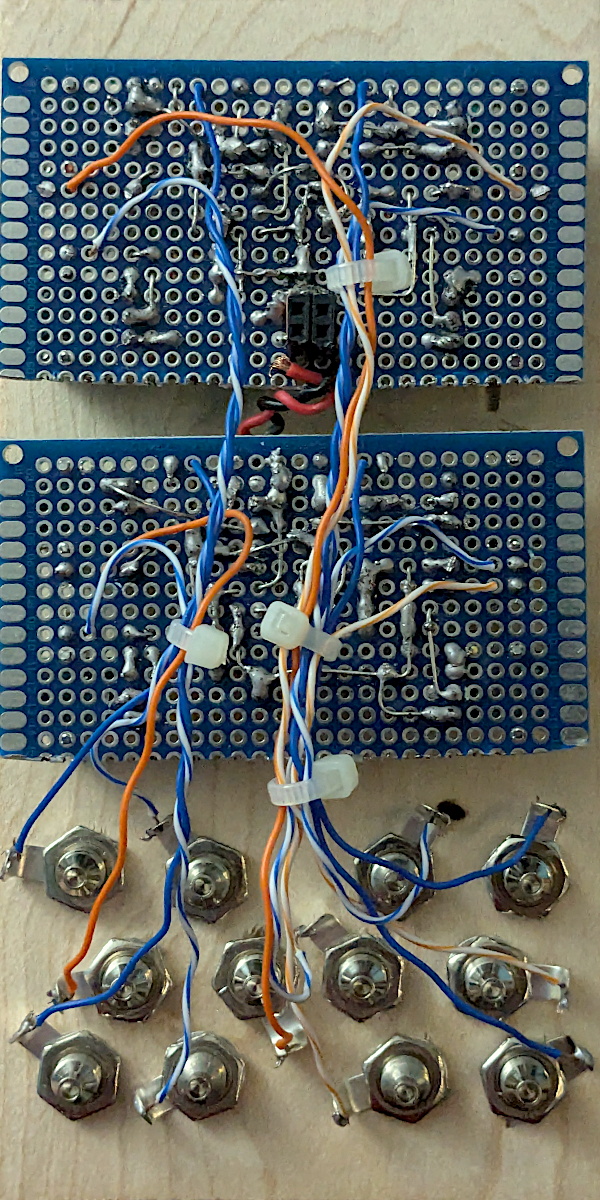

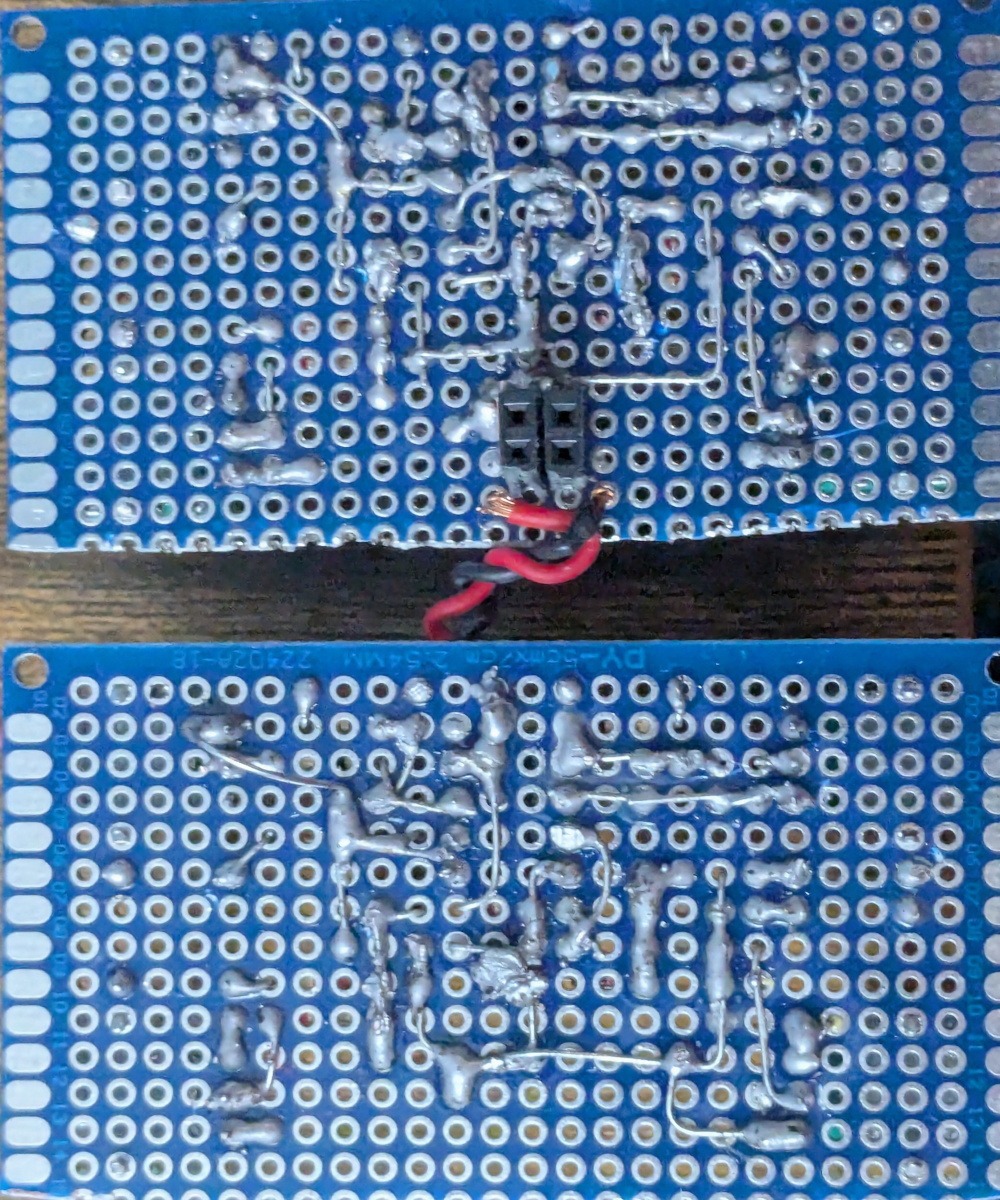

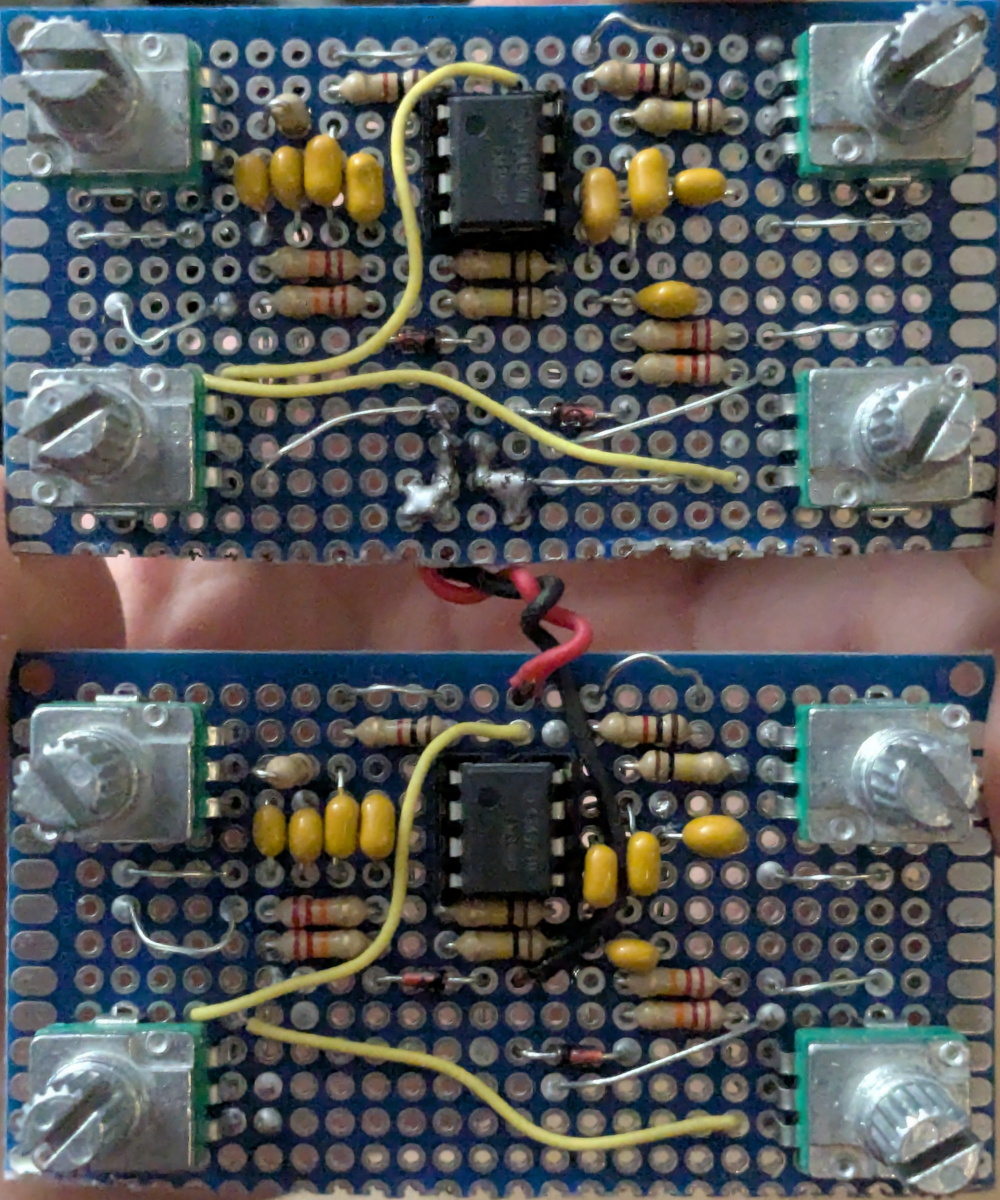

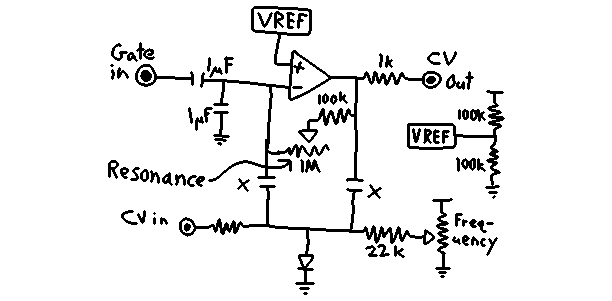

For the X capacitors, I'd recommend between 1uF and 10uF; lower value means higher frequency, which means faster tempo. On my own build, I did two 10uF and two 4.7uF, but I feel like I could definitely go lower. If you're looking to build one myself, I'd recommend referring to my layout docs and schematics to build some on perfboard.
LAYOUT DOCS COMING SOON...
